NEX-V Series

ALL-ELECTRIC INJECTION MOLDING MACHINE

Clamping force: 30~360 ton (33~397 USton)

  • All-Electric
  • Horizontal
  • Linear Pressure Toggle
  • General-Purpose
  • TACT® V Controller
  • IoT Capability
NEX180V-36E
INQUIRY & QUOTE MODELS & SPECS

New Injection Molding Machine That Can Function as a Hub in the Molding Factory

NISSEI’s new IoT technology “N-Constellation” materializes the injection molding machine to function as a network hub to connect various auxiliary equipment. It allows real-time collection of operation data, remote monitoring, and remote maintenance as well as offering predictive maintenance feature in the future. The all-new NEX-V Series leads the future of injection molding machines.

User Friendly

New IoT-Enabled Controller "TACT5"

Universal Safety Standard “ISO20430” Compliant

New Standard Screw that Improves Plasticization

Eco Friendly

Improved Mold Open/Close Precision and Repeatability

Clamping Force Reduction and Superb Mold Protection Feature

Uniform Clamping Force Transmission

Mold Friendly

Energy Efficient

Clean Performance

Excellent Maintainability


IoT-Enabled TACT 5 Controller

Supporting Digital Transformation (DX) of Injection Molding Machines

Faster and More Precise

Improved Molten Resin Quality, Contact Pressure, and Mold Open/Close Speed

NEX-V screw

The Screw That Improves the Quality of Molten Resin

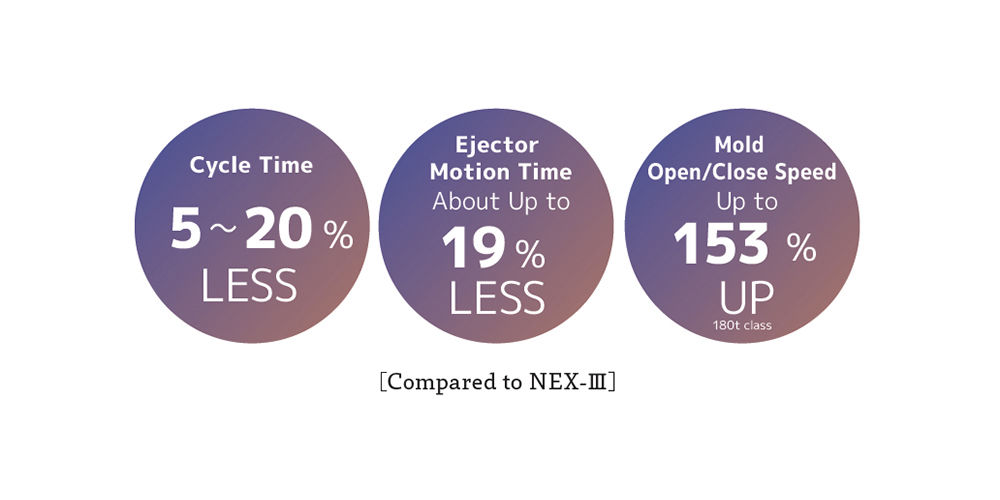

NEX-V toggle

High-Speed Toggle Mechanism + Ejector Motion

Larger Mold, Smaller Machine

Space-Saving Design and Expanded Mountable Mold Range

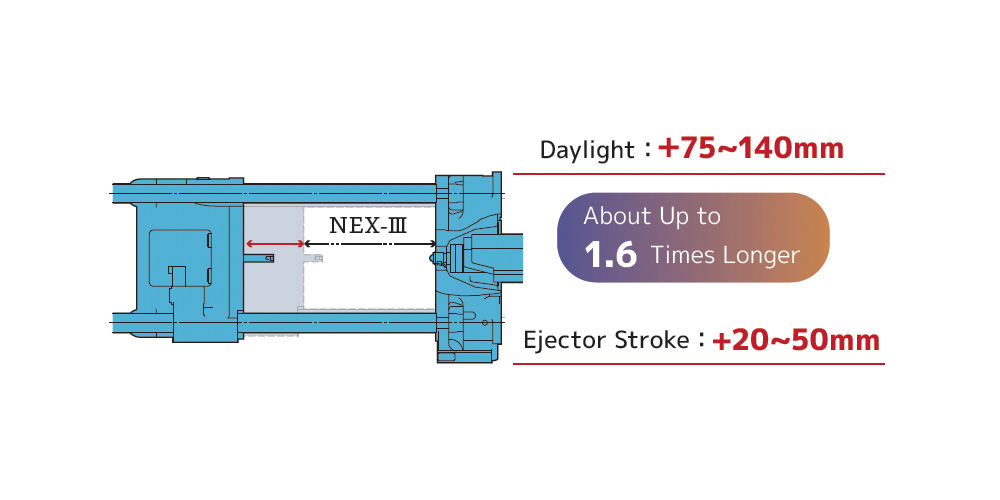

NEX-V daylight

Wide Daylight + Extended Ejector Stroke

NEX-V wide platen

Wide Platen

SPECIFICATIONS

NEX30V

Item Unit 2E | 3E
Screw diameter
inch
(mm)		A
0.63
(16)		B
0.75
(19)		|A
0.75
(19)		B
0.87
(22)
Injection capacityinch3
(cm3)
(oz)		0.8
(13)
(0.4)		1.1
(18)
(0.6)		|1.4
(23)
(0.8)		2.1
(35)
(1.2)
Max. injection pressurepsi
(MPa)
(kgf/cm2)		38450
(265)
(2704)		28440
(196)
(2000)		|38450
(265)
(2704)		30470
(210)
(2143)
Clamping force USton
(kN)
(tf)		 33
(294)
(30)
Clamping stroke inch
(mm)		 9.06
(230)
Mold thickness (min-max) inch
(mm)		 5.91~14.8
(150~375)
Max. daylight opening inch
(mm)		 23.8
(605)
Tie bar clearance (H×V) inch
(mm)		 12.2x12.2
(310x310)
Die plate dimensions (H×V) inch
(mm)		 17.7x17.7
(450x450)
Ejector stroke inch
(mm)		 1.97
(50)

NEX50V

Item Unit 3E | 5E
Screw diameter
inch
(mm)		A
0.75
(19)		B
0.87
(22)		|A
0.87
(22)		B
1.02
(26)		BB
1.10
(28)
Injection capacityinch3
(cm3)
(oz)		1.4
(23)
(0.8)		2.1
(35)
(1.2)		|2.1
(35)
(1.2)		3.0
(49)
(1.6)		3.5
(57)
(1.9)
Max. injection pressurepsi
(MPa)
(kgf/cm2)		38450
(265)
(2704)		30470
(210)
(2143)		|40630
(280)
(2857)		28440
(196)
(2000)		24520
(169)
(1725)
Clamping force USton
(kN)
(tf)		 55
(490)
(50)
Clamping stroke inch
(mm)		 9.84
(250)
Mold thickness (min.-max.) inch
(mm)		 5.91~18.1
(150~460)
Max. daylight opening inch
(mm)		 28.0
(710)
Tie bar clearance (H×V) inch
(mm)		 14.2x14.2
(360x360)
Die plate dimensions (H×V) inch
(mm)		 19.9x19.9
(505x505)
Ejector stroke inch
(mm)		 2.95
(75)

NEX80V

Item Unit 5E | 9E | 12E
Screw diameter
inch
(mm)		A
0.87
(22)		B
1.02
(26)		BB
1.10
(28)		|AA
1.02
(26)		A
1.10
(28)		B
1.26
(32)		|AA
1.10
(28)		A
1.26
(32)		B
1.42
(36)
Injection capacityinch3
(cm3)
(oz)		2.1
(35)
(1.2)		3.0
(49)
(1.6)		3.5
(57)
(1.9)		|3.6
(59)
(2.0)		4.2
(69)
(2.3)		5.5
(90)
(3.0)		|4.7
(77)
(2.6)
6.2
(101)
(3.4)		7.7
(127)
(4.3)
Max. injection pressurepsi
(MPa)
(kgf/cm2)		40630
(280)
(2857)		28440
(196)
(2000)		24520
(169)
(1725)		|40630
(280)
(2857)		35260
(243)
(2480)		26990
(186)
(1898)		|40630
(280)
(2857)		32360
(223)
(2276)		25680
(177)
(1806)
Clamping force USton
(kN)
(tf)		 88
(784)
(80)
Clamping stroke inch
(mm)		 11.8
(300)
Mold thickness (min.-max.) inch
(mm)		 5.91~19.1
(150~485)
Max. daylight opening inch
(mm)		 30.9
(785)
Tie bar clearance (H×V) inch
(mm)		 16.5x16.5
(420x420)
Die plate dimensions (H×V) inch
(mm)		 22.8x22.8
(580x580)
Ejector stroke inch
(mm)		 2.95
(75)

NEX110V

Item Unit 9E | 12E | 18E
Screw diameter
inch
(mm)		AA
1.02
(26)		A
1.10
(28)		B
1.26
(32)		|AA
1.10
(28)		A
1.26
(32)		B
1.42
(36)		|AA
1.26
(32)		A
1.42
(36)		B
1.57
(40)
Injection capacityinch3
(cm3)
(oz)		3.6
(59)
(2.0)		4.2
(69)
(2.3)		5.5
(90)
(3.0)		|4.7
(77)
(2.6)		6.2
(101)
(3.4)		7.8
(127)
(4.3)		|7.1
(117)
(3.9)		9.0
(148)
(5.0)		11.1
(182)
(6.1)
Max. injection pressurepsi
(MPa)
(kgf/cm2)		40630
(280)
(2857)		35260
(243)
(2480)		26990
(186)
(1898)		|40630
(280)
(2857)		32360
(223)
(2276)		25680
(177)
(1806)		|40050
(276)
(2816)		31630
(218)
(2225)		25680
(177)
(1806)
Clamping force USton
(kN)
(tf)		 121
(1080)
(110)
Clamping stroke inch
(mm)		 13.8
(350)
Mold thickness (min.-max.) inch
(mm)		 7.09~20.1
(180~510)
Max. daylight opening inch
(mm)		 33.9
(860)
Tie bar clearance (H×V) inch
(mm)		 18.1x18.1
(460x460)
Die plate dimensions (H×V) inch
(mm)		 25.5x25.5
(647x647)
Ejector stroke inch
(mm)		 3.94
(100)

NEX140V

Item Unit 12E | 18E | 25E
Screw diameter
inch
(mm)		AA
1.10
(28)		A
1.26
(32)		B
1.42
(36)		|AA
1.26
(32)		A
1.42
(36)		B
1.57
(40)		|AA
1.42
(36)		A
1.57
(40)		B
1.7
(45)
Injection capacityinch3
(cm3)
(oz)		4.7
(77)
(2.6)		6.2
(101)
(3.4)		7.7
(127)
(4.3)		|7.1
(117)
(3.9)		9.0
(148)
(5.0)		11.1
(182)
(6.1)		|9.9
(163)
(5.5)		12.3
(201)
(6.7)		15.5
(254)
(8.5)
Max. injection pressurepsi
(MPa)
(kgf/cm2)		40630
(280)
(2857)		32360
(223)
(2276)		25680
(177)
(1806)		|40050
(276)
(2816)		31630
(218)
(2225)		25680
(177)
(1806)		|37870
(261)
(2663)		30620
(211)
(2153)		24230
(167)
(1704)
Clamping force USton
(kN)
(tf)		 154
(1373)
(140)
Clamping stroke inch
(mm)		 15.7
(400)
Mold thickness (min.-max.) inch
(mm)		 7.09~21.7
(180~550)
Max. daylight opening inch
(mm)		 37.4
(950)
Tie bar clearance (H×V) inch
(mm)		 20.1x20.1
(510x510)
Die plate dimensions (H×V) inch
(mm)		 28.3x28.3
(720x720)
Ejector stroke inch
(mm)		 4.72
(120)

NEX180V

Item Unit 18E | 25E | 36E
Screw diameter
inch
(mm)		AA
1.26
(32)		A
1.42
(36)		B
1.57
(40)		|AA
1.42
(36)		A
1.57
(40)		B
1.77
(45)		|AA
1.57
(40)		A
1.77
(45)		B
1.97
(50)
Injection capacityinch3
(cm3)
(oz)		7.1
(117)
(3.9)		9.0
(148)
(5.0)		11.1
(182)
(6.1)		|9.95
(163)
(5.5)		12.3
(201)
(6.7)		15.5
(254)
(8.5)		|13.8
(226)
(7.6)		17.5
(286)
(9.6)		21.5
(353)
(11.8)
Max. injection pressurepsi
(MPa)
(kgf/cm2)		40050
(276)
(2816)		31620
(218)
(2224)		25680
(177)
(1806)		|37870
(261)
(2663)		30620
(211)
(2153)		24230
(167)
(1704)		|37730
(260)
(2653)		29890
(206)
(2102)		24230
(167)
(1704)
Clamping force USton
(kN)
(tf)		 198
(1765)
(180)
Clamping stroke inch
(mm)		 17.7
(450)
Mold thickness (min.-max.) inch
(mm)		 6.89~23.0
(175~585)
Max. daylight opening inch
(mm)		 40.7
(1035)
Tie bar clearance (H×V) inch
(mm)		 22.0x22.0
(560x560)
Die plate dimensions (H×V) inch
(mm)		 31.5x31.5
(800x800)
Ejector stroke inch
(mm)		 5.91
(150)

NEX220V

Item Unit 50E | 71E
Screw diameter
inch
(mm)		AA
1.77
(45)		A
1.97
(50)		B
2.20
(56)		|AA
1.97
(50)		A
2.20
(56)		B
2.48
(63)
Injection capacityinch3
(cm3)
(oz)		19.9
(326)
(10.9)		24.6
(403)
(13.5)		30.8
(505)
(16.9)		|27.0
(442)
(14.8)		33.8
(554)
(18.6)		42.8
(701)
(23.5)
Max. injection pressurepsi
(MPa)
(kgf/cm2)		36280
(250)
(2551)		29310
(202)
(2061)		23360
(161)
(1643)		|36130
(249)
(2541)		28880
(199)
(2031)		22780
(157)
(1602)
Clamping force USton
(kN)
(tf)		 243
(2160)
(220)
Clamping stroke inch
(mm)		 21.7
(550)
Mold thickness (min.-max.) inch
(mm)		 10.8~26.8
(275~680)
Max. daylight opening inch
(mm)		 48.4
(1230)
Tie bar clearance (H×V) inch
(mm)		 26.0x24.0
(660x610)
Die plate dimensions (H×V) inch
(mm)		 36.2x34.3
(920x870)
Ejector stroke inch
(mm)		 5.91
(150)

NEX280V

Item Unit 71E | 100LE
Screw diameter
inch
(mm)		AA
1.97
(50)		A
2.20
(56)		B
2.48
(63)		|AA
1.97
(50)		A
2.20
(56)		B
2.48
(63)
Injection capacityinch3
(cm3)
(oz)		27.0
(442)
(14.8)		33.8
(554)
(18.6)		42.8
(701)
(23.5)		|33.6
(550)
(18.4)		47.4
(776)
(26.0)		59.9
(982)
(32.9)
Max. injection pressurepsi
(MPa)
(kgf/cm2)		36130
(249)
(2541)		28880
(199)
(2031)		22780
(157)
(1602)		|36130
(249)
(2541)		28880
(199)
(2031)		22780
(157)
(1602)
Clamping force USton
(kN)
(tf)		 308
(2740)
(280)
Clamping stroke inch
(mm)		 23.6
(600)
Mold thickness (min.-max.) inch
(mm)		 11.8~29.5
(300~750)
Max. daylight opening inch
(mm)		 53.1
(1350)
Tie bar clearance (H×V) inch
(mm)		 29.9x26.0
(760x660)
Die plate dimensions (H×V) inch
(mm)		 41.5x37.6
(1055x955)
Ejector stroke inch
(mm)		 5.91
(150)

NEX360V

Item Unit 100LE
Screw diameter
inch
(mm)		AA
1.97
(50)		A
2.20
(56)		B
2.48
(63)
Injection capacityinch3
(cm3)
(oz)		33.6
(550)
(18.4)		47.4
(776)
(26.0)		59.9
(982)
(32.9)
Max. injection pressurepsi
(MPa)
(kgf/cm2)		36130
(249)
(2541)		28880
(199)
(2031)		22780
(157)
(1602)
Clamping force USton
(kN)
(tf)		 397
(3530)
(360)
Clamping stroke inch
(mm)		 25.6
(650)
Mold thickness (min.-max.) inch
(mm)		 11.8x31.1
(300~790)
Max. daylight opening inch
(mm)		 56.7
(1440)
Tie bar clearance (H×V) inch
(mm)		 31.9x29.9
(810x760)
Die plate dimensions (H×V) inch
(mm)		 44.5x42.5
(1130x1080)
Ejector stroke inch
(mm)		 7.87
(200)

● Specifications apply to U.S. machines only.
● All specs and dimensions are subject to change without notice or may differ depending on export destinations and manufactured year.
● NISSEI is not responsible for any inaccuracies contained herein.
● Please consult our sales representative or NISSEI regional offices before designing a mold.
● Actual plasticizing capacity may vary, depending on the molding conditions and material used.
